Notes on Mathematical Foundations of Computation

Introduction

The notes on Mathematical Foundations or the Theory of Computation presented below are mainly based on Hopcroft, J., Motwani, R. & Ullman, J. (2007), Introduction to Automata Theory, Languages, and Computation, 3rd Edition, Addison Wesley and Daniel Cohen, (1997), Introduction to Computer Theory, 2nd Edition, John Wiley & Sons, and Sipser, M. (2012) Introduction to the Theory of Computation, Cengage Learning, 3rd edition. We will emphasize mathematical models of computation in this class. Chapter 1 of Cohen (1997) includes a brief history of the subject. Read it and pay attention to these questions:

1. What was the main theme of David Hilbert's speech in 1900 that turned out to be of major significance to the development of computer science?
2. What was the 10th problem on Hilbert’s list?
3. What did Turing prove about his abstract machine?
4. How did World War II affect the development of the computer?

“…. The way we shall be studying about computers is to build mathematical models, which we shall call machines, and then to study their limitations by analyzing the types of input on which they operate successfully.” (Cohen 1997, page 3)

“…. Turing’s theoretical model for an algorithm machine employing a very simple set of mathematical structures held out the possibility that a physical model of Turing’s idea could actually be constructed .” (Cohen 1997, page 5)

"Turing's goal was to describe precisely the boundary between what a computing machine could do and what it could not do; his conclusions apply not only to his abstract Turing Machines, but to today's real machines." (Hopcroft, Motwani & Ullman 2007, Page 1)



Useful Links for Automata

• Regular Expressions Primer and Resource - A Guide to Regular Expressions
• Jeff Ulman's Notes on Introduction to Automata Theory, Languages, and Computation
http://infolab.stanford.edu/~ullman/ialc.html
• Automata Theory - An essay by David Weir.
• Computation, Automata, Languages - Notes, small essays, explanations, reading lists. By Cosma Rohilla Shalizi.
• Turing Machines - A brief survey of finite state automata, pushdown automata, linear bounded automata and Turing machines.
• Mathematical Foundations - A Course offered at Stanford University
• Non-determinsitic Finite Automata (NFA) - A Discussion of NFA.
• Push-Down Automata - Notes for a linguistics course defining PDA and showing their relation to context free languages.
• Pushdown Automata - A site with a formal definition of PDA, some examples and a proof that PDA accept context free languages.
• http://www.cs.duke.edu/csed/jflap/tutorial/fa/createfa/fa.html - Notes on & Tools for Automata

Why Study Automata Theory (see Hopcroft, Motwani & Ullman 2007, page 2) “There are several reasons why the study of automata and complexity is an important part of the core of Computer Science." (Hopcroft, Motwani & Ullman 2007, Page 2). The principal motivation and some of the important applications are briefly mentioned below: (1)  Software for designing and checking the behavior of digital circuits is modeled with Finite Automata (FA). (2)  Finite Automaton (FA) model and define the lexical analyzer of a typical compiler where the input text is broken into logical units such as identifiers, keywords, and punctuation. (3)  Software for searching large bodies of text is also modeled in Finite Automata (FA). (4)  The Syntax Analyzer of a typical compiler is modeled by Pushdown Automata (PDA) or One-Stack Automata (OSA). (5)  Turing Machines (TMs) define and model computability in the most elegant form. TMs also allow clear distinction between intractable and tractable computation. TMs define un-decidable problems in an elegant way. (6)  A processing framework for every computable set can be given by TMs. (7)  Every computer program can be interpreted as a TM.

---

FINITE AUTOMATA (See Hopcroft, Motwani & Ullman (2007) Chapter 2 & 3, Cohen (1997) Chapters 4-6, and Sipser (2012)Chapter 1)

This section introduces "Regular Expressions", "Regular Languages" and Finite Automata (FA). A finite automaton is an abstract machine which can process words or strings from a Regular Language or Regular Expressions. These terms will be defined after some intuitive introductions. An FA is a machine that reads an input string or word one character at a time from a Read Only Input Buffer.

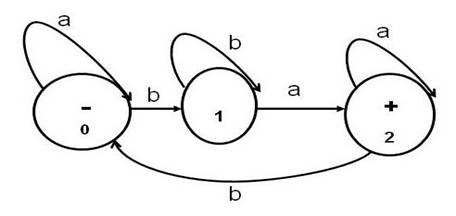

Consider the following FA, which is a Deterministic FA:

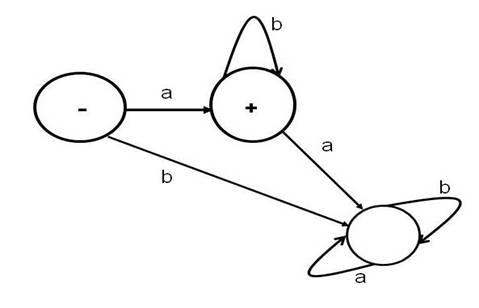

Figure 1: A Finite Automaton (FA) for ab* = {a, ab, abb, abbb, abbbb, abbbbb, . . . }
Assume that abb is given as an input to this FA. Beginning in the start state, the machine reads the first letter which is a and takes the transition marked by a and goes to the state q₁ . From the state q₁ the machine reads the next character which is a b and takes the loop transition marked by b . The machine then reads the next character which is a b and takes the same loop transition again. By now the machine has finished the input string and ends in the final state or accept state and therefore, it accepts the input. The same FA can be represented in a different notation as in Figure 2; this notation is popularized by Cohen (1997).

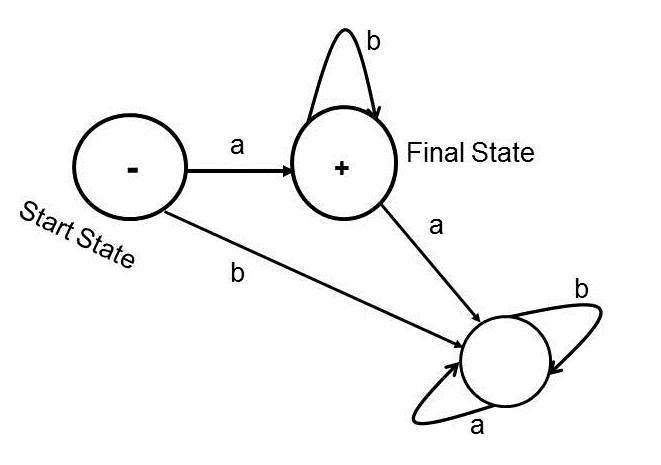

Figure 2: A Finite Automaton (FA) for ab* in the notation of Cohen (1997)
A type of dynamic visualization of the above FA is given at: http://www.asethome.org/fa/. For a demonstration, please click here.

For a definition of FA, please click here     or visit http://www.asethome.org/fa/fa_regularExpression.html.

A non-deterministic finite Automaton (NFA) for ab* is given in Figure 3 which looks simpler than the deterministic FA (DFA) given in Figure 2. However, the DFA of Figure 2 and the NFA of Figure 3 are equivalent, because both accept every string from the set {a, ab, abb, abbb, abbbb, abbbbb, . . . } = ab*.

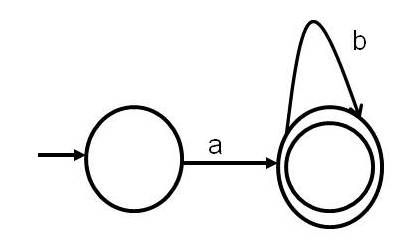

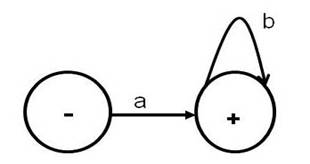

Figure 3: A Non-deterministic Finite Automaton (NFA) for ab* in the notation of Cohen (1997)

LANGUAGES

We begin our study of computation considering the nature of input, that is, the strings that may be given as input to a machine or automata. In order to study the input strings or string patterns precisely, formal languages are proposed. By formal we don't mean dressed up, we mean languages with a form defined by rules that say which strings are in the language and which are not. We are only interested in syntax here, not semantics (meaning). We are interested in the form of a string of symbols, not the meaning of the string.

The finite set of symbols that we will use to build our strings is called the alphabet. We will have rules that tell us how to put symbols together to form valid strings called words or strings. The entire set of valid strings is called a language. In other words, a language is a set of well-formed strings.

We will find it useful to have a string containing no symbols, the empty string or null string . No matter what our alphabet is, we will always use for the empty string. We will not allow to be a symbol in any alphabet. Some books use epsilon for the null string or empty string.

We also have a symbol for an empty language. Since a language is a set, the empty language is the empty set . Note that is not the same as because their data types are different.

Note that our author substitutes + for to do the union of sets. L + { } adds the empty string to the strings of language L to form a new language.

We will use the symbol as the name for alphabets the way we use L as the name for a language. is a set of symbols from which strings of the language are made.

One way to define a language is to list the words in that language, but if the language is infinite we certainly can't do that. In such a case we make use of rules describing the words in the language.



Examples

1. = { a }
   L₁ = { , a, aa, aaa, aaaa, aaaaa, . . . }     = a*
   This language consists of the null string, a string of one a, a string of two a’s and strings of more a's. The a's are concatenated together to build strings such as aa, aaa and aaaa. L₁ includes every string that can be made from a. a³ means three a’s concatenated together, that is aaa. In the context of strings, superscripts denote repetition, not numerical exponentiation. That is, 1⁴ means 1111. Thus, 1 ⁿ means n 1's concatenated together.

If we need to have variables that can be instantiated to one of the words in L₁, we will use names such as X or Y. Let X = a³ and Y = a⁵. Then XY = a³a⁵ = a³⁺⁵ = a⁸ = aaaaaaaa.

For L₁, any two words that we concatenate together will form another word in L₁. So, we say that L₁ is closed under concatenation. This is not always true for a language.

          A language similar to L₁ is:     L₁₂ = { ^, 1, 11, 111, 1111, 11111, 111111, . . . } = 1*

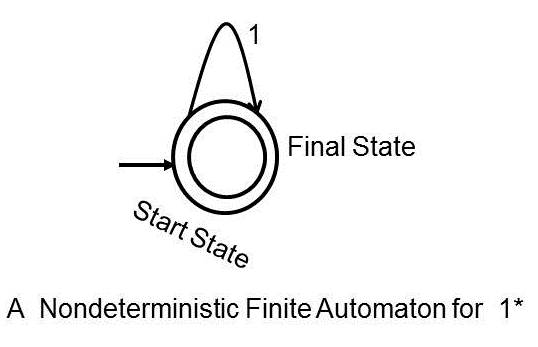

          A machine for 1* is given below, where = { 1 }:

2. L₂ = {aⁱ | i and i is odd}.
   Is L₂ closed under concatenation? Consider the concatenation of a and aaa, both of which are elements of L₂. Is aaaa in L₂? No! So L₂ is not closed under concatenation.

          L₂ = { a, aaa, aaaaa, aaaaaaa, . . . }

3.  = {a, b}
L₃ = { ^, a, b, aa, ab, ba, bb, aaa, aba, aab, abb, baa, bba, bab, bbb, . . . } = (a+b)* = (a U b)*

L₃ has all possible strings made from a and b in any combination. The ‘*’ is called the Klene star.

The length of a string is the number of symbols in the string. The length of is 0. The length of aab is 3.

4. = { a,b }
   PALINDROME = { and all strings x such that x = reverse(x)}
   = {, a, b, aa, bb, aaa, aba, bbb, bab, ...}

Is PALINDROME closed under concatenation? (no)
How about under reverse? (yes)

5. = {0,1}
   Suppose we want to allow a language to contain any string made from this alphabet including the empty string. We have some notation for that:

^* = {0,1}* = {, 0, 1, 00, 01, 10, 11, 000, 001, 010, 011, 100, 101, 110, 111, ...}

We call the * the Kleene star. We call the language ^* the Kleene closure or just the closure of .

If = {a,b,c} then ^* = {, a,b,c,aa,ab,ac,ba,bb,bc,ca,cb,cc,...}. The order in which we list the symbols a,b,c when we write the alphabet determines the relationship we use to put words in "alphabetical order". When we list some of the words of a formal language, we don't use straight alphabetical order. Instead we put them in lexicographic order. This means that we list the words first by length and then within a group that have the same length we use alphabetical order.

6. We can use the Kleene star to make strings of words just as we use it to make strings of characters.
   = {a,b}
   S = {aa,b}
   S* = {, b, aa, bb, aab, baa, bbb, aaaa, aabb, baab, bbaa, bbbb, ...}
7. = {a,b}
   S = {a, ab}
   S* = {, a, aa, ab, aaa, aab, aba, aaaa, aaab, aaba, abaa, abab, ...}
   = strings over that start with a and never contain bb.

To prove that a word such as aaabaaba is in S*, we have to break it down into concatenated a's and ab's. We call this factoring.

aaabaaba = (a)(a)(ab)(a)(ab)(a).

In this language a word has only one possible factoring. That is not always the case. It is certainly not the case when contains only one symbol.

8. = {x}
   S = {xx, xxx}
   S* = {, xx, xxx, xxxx, ...}

xxxxx = (xx)(xxx) = (xxx)(xx)

Can we make all strings of x's with length > 1 out of xx and xxx? How? Try to describe an algorithm with cases. That is, tell how to make any string of even length and in a separate case how to make any string of odd length. Or mod the length of the string by 3 and tell what to do in each of the three possible cases. These types of algorithms are called constructive algorithms and are often used to prove that some particular thing can always be done. Telling how to do it for all possible cases proves that it can always be done.

There are only two cases in which a Kleene closure is not an infinite set. If = , then ^* = {}. And if S = {} then S* = {} because = .

We have another operator, the superscripted +, which means "1 or more of". Forming ⁺ is very much like ^* but we omit . We call this operator the positive closure operator.

Can we take the closure of an infinite set? What is (^*)^*?

= {a,b}
^* = {, a, b, aa, ab, ba, bb, ...}
(^*)^* = {, a, b, aa, ab, ba, bb, ...}

Theorem 1. For any set S of strings, S* = S**.
Proof. The proof of this theorem involves double factoring. Strings in S** are concatenations of strings in S*, which are concatenations of strings in S. So any string in S** can be factored into strings in S.

A more formal proof is in the textbook. To prove that two sets are equal we divide the proof into two parts. To show A = B we show that A B and B A and. Note that our author uses the way we use .

Recursive Definitions



Defining a set recursively is a 3-step process. Here is an example in which we define the set of positive even numbers.

1. Basis: 2 is in the set EVEN.
2. Inductive step: If x is in EVEN then so is x + 2.
3. Closure: Nothing else is in EVEN.

In the basis step we place one or more elements into the set to give ourselves a starting point. In the inductive step we describe rules that tell how to take elements that are already in the set and make new elements to put in the set. The closure step is always the same so we can omit it as long as everybody understands that it is still there by default.

More Examples

1. The set of positive integers.
1. 1 is in POSINTS.
2. If x is in POSINTS then so is x+1.
2. The set of strings of x's of length > 0.
1. x is in L₁.
2. If string w is in L₁ then so is xw. (Prepend an x onto the string w.)
3. The set of strings of x's of any length including 0.
1. is in L₄.
2. If w is in L₄ then xw is in L₄.
4. {xⁿ | n is odd}.
1. x is in L₂.
2. If w is in L₂ then xxw is in L₂.
5. The set of decimal integers.
1. 1,2,3,...,9 are in INTEGERS.
2. If w is in INTEGERS then so are w0, w1, w2, ..., w9.
6. The closure of a set of strings S.
1. and all the words of S are in S*.
2. If x and y are in S* then xy is in S*.
7. Arithmetic expressions using +, -, *, and /:
1. Any number is in the set AE.
2. If x is in the set AE then so are (x) and -x (if x doesn't already start with -.) If x and y are in the set AE then so are x+y, x-y, x*y, and x/y.























REGULAR EXPRESSIONS

We have used the notation L* for the Kleene closure of language L. If L = {x} we could write {x}* and mean the same thing. The braces don't really improve our understanding so we will allow writing simply x* to mean the Kleene closure of the set {x}. We will say that x* generates {, x, xx, xxx, xxxx, xxxxx ...}.

The * means 0 or more of. It applies to the symbol or parenthesized expression to its left. The notation ab* generates {a, ab, abb, abbb, abbbb, . . . .}, but (ab)* generates {, ab, abab, ababab, abababab, . . .}.

We use the superscripted + to mean 1 or more of. xx* = x⁺ and these generate {x, xx, xxx, xxxx, . . . .}.

ab*a generates {aa, aba, abba, abbba, ...}. a*b* generates {, a,b,aa,ab,bb,aaa,aab,abb,bbb,...}. This is the set of strings of 0 or more a's and 0 or more b's where all the a's come before the b's.

x(xx)* = (xx)*x and these generate strings of x's of odd length.

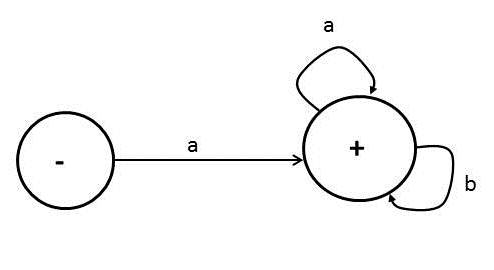

The plus symbol can also be used to mean "or". In this case it is not superscripted. (x + y) means x or y and this expression generates the set {x,y}. (a+c)b* = (a U c)b* which generates {a,c,ab,cb, abb,cbb,abbb, cbbb, ...}. (a+b)(a+b) generates {aa, ab, ba, bb}. We could also generate this last language with (a+b)² but this is not usually done. (a+b)* generates the closure of {a,b} = {, a,b,aa,ab,ba,bb,...}. This last expression is very useful and can be combined with others as in a(a+b)* which generates words over {a,b} that start with a. The expression a(a+b)*b generates words that start with a and end with b.

The expressions we have been using are called regular expressions. The languages they define are called regular languages. Here is a recursive definition of the set of regular expressions over the alphabet :

1. Every element of is a regular expression. ^ is a regular expression.
2. If R₁ and R₂ are regular expressions, then so are

R₁R₂, R₁+R₂, R₁* and (R₁).

3. Nothing else is a regular expression

Accourding to rule 2, concatenation, union, Kleene Star and parentheses can be used to create new regular expressions from old ones. Suppose = { a, b }, then a and b are regular expressions according to rule 1. According to rule 2, ab,     a+b,     a*     and     (a) are also regular expressions . Please note that a+b is often written as       a U b     (see Sipser, M. (2012) Introduction to the Theory of Computation , Course Technology.)

We use (phi) to denote the regular expression that generates the empty language .

(a+b)*a(a+b)* generates strings containing at least one a. The string aabab is such a string. How could we get that string using the regular expression (a+b)*a(a+b)*? In three different ways. The required a could be either the first, the second, or the third a in aabab.

The expressions b* + (a+b)*a(a+b)* and (a+b)* both generate the same language, the set of all strings over {a,b}. Why? The only strings not generated by (a+b)*a(a+b)* are strings made completely of b's. The expression b* + (a+b)*a(a+b)* generates the union of the two languages 1) strings made of 0 or more b's, and 2) strings containing at least one a. This union contains all strings over {a,b}.

How would we write a regular expression for strings that contain at least two a's? Note that it is not necessary that the two a's be contiguous. One such regular expression is (a+b)*a(a+b)*a(a+b)*. Another is b*ab*a(a+b)*. The difference in these two regular expressions becomes obvious when you attempt to generate a particular string using the regular expression. How would you generate babaaba? With the first expression there are six different ways, but with the second expression there is only one way. The required a's in the second expression must be the first two a's of the string.

Two regular expressions are equivalent if they generate the same set of strings. Here are some more regular expressions for the language of strings containing at least two a's: (a+b)*ab*ab* and b*a(a+b)*ab*. In the first one the required a's are the last two a's of the string and in the second one the required a's are the first and the last.

How would we write a regular expression for strings containing exactly two a's?   b*ab*ab*; it allows exactly two a's and zero or more b's

How about at least one a and at least one b? Note that whatever regular expression we choose must be able to generate both ab and ba. An expression that does the job:

• (a+b)*a(a+b)*b(a+b)* + (a+b)*b(a+b)*a(a+b)*

Here are some expressions that are equivalent to (a+b)*:

• (a+b)* + (a+b)*
• (a+b)*(a+b)*
• (a*b*)*
• (a*+b*)*
• a(a+b)* + b(a+b)* +
• (a+b)*ab(a+b)* + b*a*

If a language is finite, a regular expression for that language is just an OR of all the words in the language. For example, if L = {ab, aba, bb} then a regular expression for L is ab + aba + bb. If the language includes , we add it to the regular expression as in + ab + aba + bb.

We can concatenate two languages in a similar way to concatenating strings, except that we pair up and concatenate all possible strings. If S = {a, aa, ba} and T = {bab, bb}, then ST contains all strings that begin with an element of S and end with an element of T (with nothing in between.) ST = {abab, abb, aabab, aabb, babab, babb} (not listed in lexicographic order.) A regular expression for ST is (a + aa + ba)(bab + bb).

We define the language generated by a regular expression this way:

1. If the regular expression is then the language is {}. If the regular expression is a single symbol a from the alphabet, the language is {a}.
2. If regular expression R₁ generates language L₁ and regular expression R₂ generates language L₂, then (R₁)(R₂) generates L₁ L₂, (R₁)+(R₂) generates L₁L₂ = L₁+L₂, and (R₁)^* generates L₁^*.

Every regular expression generates some language but not every language is generated by a regular expression. Every finite language can be generated by a regular expression but many infinite languages cannot.

Figuring out what language is generated by a regular expression can be tricky. Try these:

• (a+b)*(aa+bb)(a+b)*     strings containing a double letter
• (+b)(ab)* (+a)     strings that do not contain any double letters
• b*(abb*)*( +a)     strings that do not contain aa
