Extra-Credit
 Homework-E1, Due  08/08/2016     Student Name:

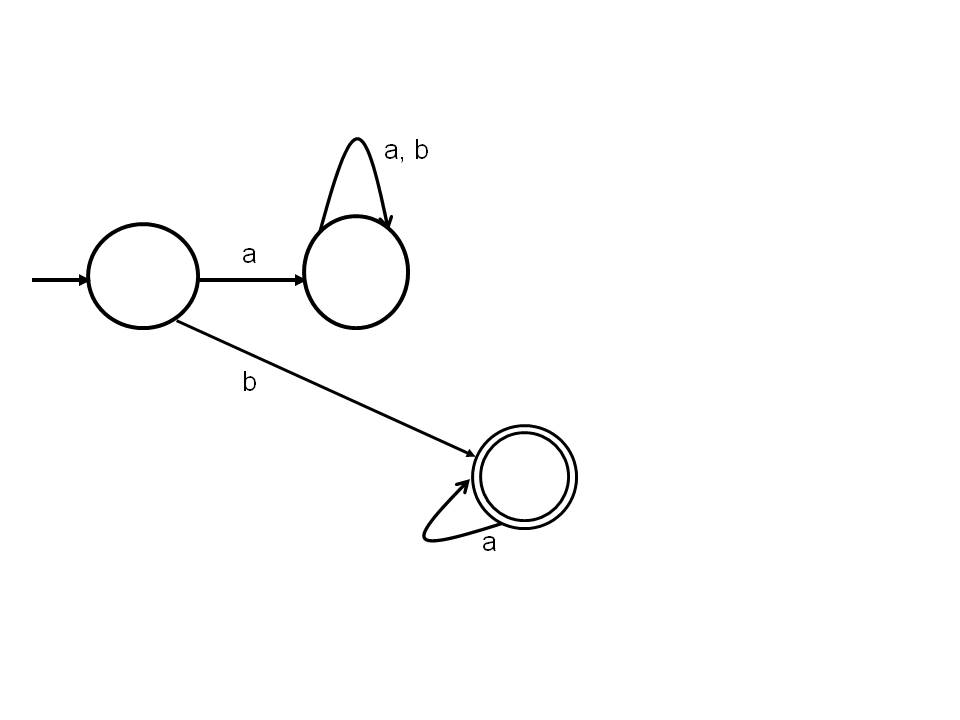

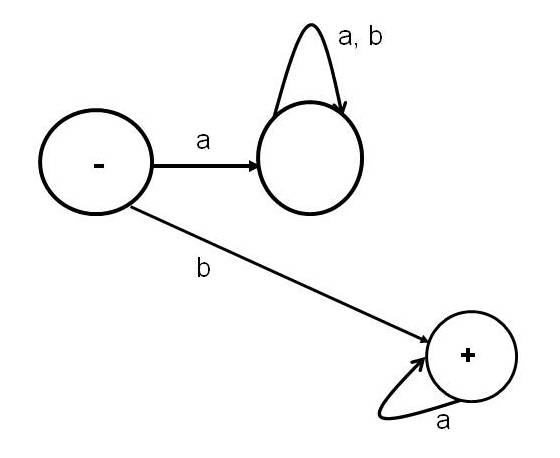

1.1  Write a regular expression for each of the following Non-Deterministic
     Finite Automata (NFA):








1.2.   Build an FA  that accepts the regular expression:    b*ab











1.3  Build an FA (or NFA) that accepts only the words   baa,  ab  and abb
     and no other strings longer or shorter.













1.4  Build an FA  that accepts      ab*ab*a











1.5  Build an NFA for  (a+b)*ab
